AUTOMOBILE CABLES
Jainson Automobile Cables are designed for reliable performance in automotive electrical systems. Manufactured using high-quality annealed copper conductors and heat-resistant PVC insulation, these cables ensure stable current transmission under varying temperature and environmental conditions. Suitable for internal wiring in vehicles, these cables offer durability, flexibility, and resistance to chemicals, oils, and fuels.

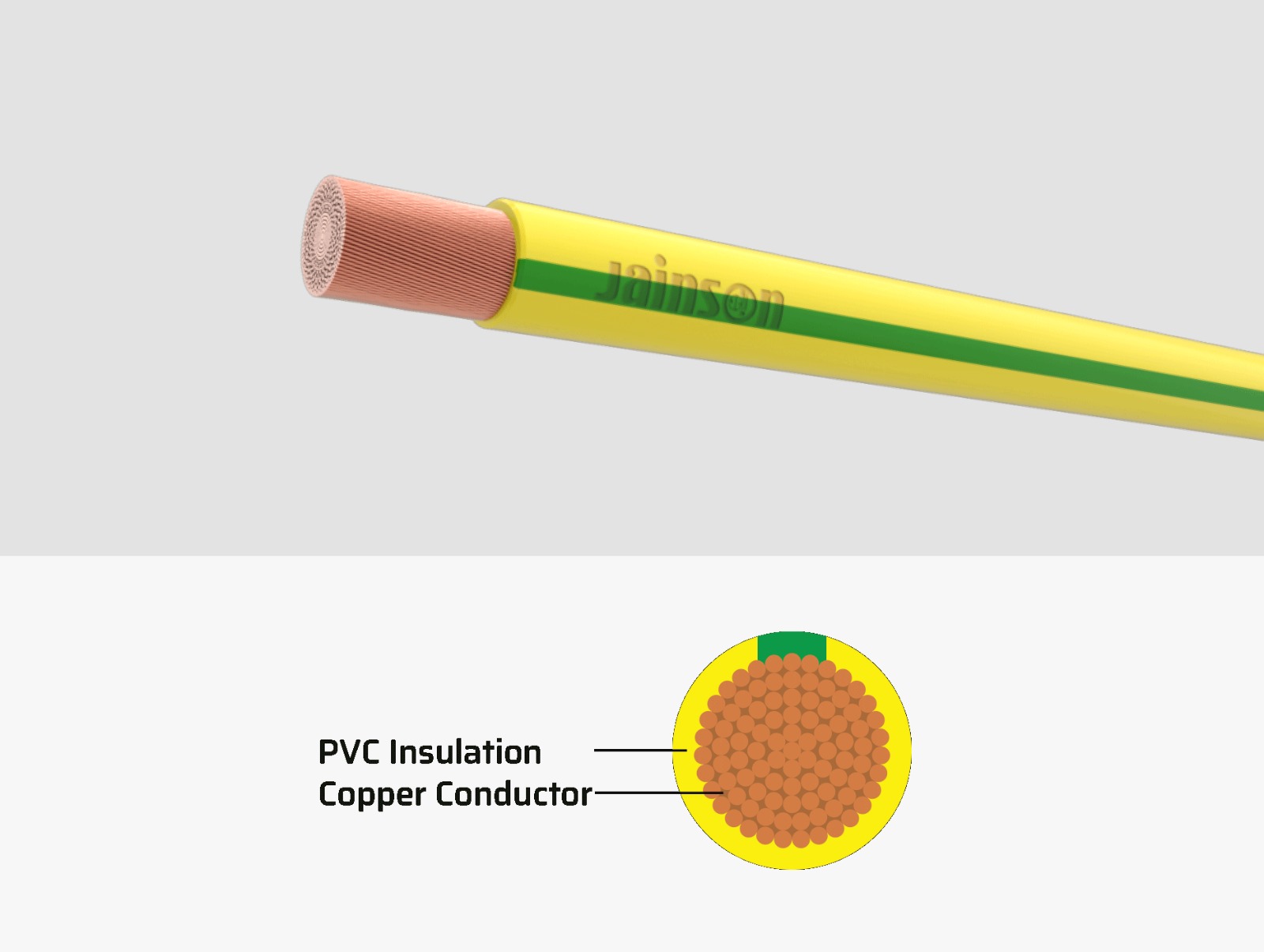

Automobile Cable Structure
Conductor : Soft or annealed copper wire conforming to ASTM B3 or EN 13602
Insulation : Heat-resistant PVC as per ISO 19642 (Temperature Class T2 & T3)
Temperature Rating : T2 (-40°C to +100°C), T3 (-40°C to +125°C)
Voltage Rating : Thin Wall: 30V AC or 60V DC
Thick Wall: 600V AC or 900V DC
Thick Wall: 600V AC or 900V DC
Colours : Black, Blue, Brown, Green, Orange, Red, Violet, White & Yellow
Notes : Other colours can be manufactured as per customer requirements
Automobile Cable Features
ROHS compliant PVC compound
Flame retardant
Resistant to acids, petrol, and diesel
High flexibility for routing in compact spaces
Excellent mechanical strength
Stable performance under temperature variations
Cable Application
- Internal wiring harnesses in automobiles
- Lighting systems
- Control panels and dashboards
- Infotainment and navigation systems
- Power distribution inside vehicle cabins
- Battery and sensor connections
Technical Data
| Cross Sectional Area (Sq.mm) | No. of Strand / Max Strand Dia (mm) | Max Conductor Resistance at 20°C (Ω/km) Plain Copper |
Sn Plated Copper (Ω/km) | Min Insulation Thickness (mm) | Min Cable Diameter (mm) | Max Cable Diameter (mm) | |||
|---|---|---|---|---|---|---|---|---|---|
| Thin Wall | Thick Wall | Thin Wall | Thick Wall | Thin Wall | Thick Wall | ||||
| 0.35 | 12/0.21 | 54.400 | 55.500 | 0.20 | - | 1.2 | - | 1.4 | - |
| 0.50 | 16/0.21 | 37.100 | 38.200 | 0.22 | 0.48 | 1.4 | 2.0 | 1.6 | 2.30 |
| 0.75 | 24/0.21 | 24.700 | 25.400 | 0.24 | 0.48 | 1.7 | 2.2 | 1.9 | 2.50 |
| 1.00 | 32/0.21 | 18.500 | 19.100 | 0.24 | 0.48 | 1.9 | 2.4 | 2.1 | 2.70 |
| 1.50 | 30/0.26 | 12.700 | 13.000 | 0.24 | 0.48 | 2.2 | 2.7 | 2.4 | 3.00 |
| 2.50 | 50/0.26 | 7.600 | 7.820 | 0.28 | 0.56 | 2.7 | 3.3 | 3.0 | 3.60 |
| 4.00 | 56/0.31 | 4.710 | 4.850 | 0.32 | 0.64 | 3.4 | 4.0 | 3.7 | 4.40 |
| 6.00 | 84/0.31 | 3.140 | 3.230 | 0.32 | 0.64 | 4.0 | 4.6 | 4.3 | 5.00 |
| 10.00 | 80/0.41 | 1.820 | 1.850 | 0.48 | 0.80 | 5.3 | 5.9 | 6.0 | 6.50 |
| 16.00 | 126/0.41 | 1.160 | 1.180 | 0.52 | 0.80 | 6.4 | 7.7 | 7.2 | 8.30 |
| 25.00 | 196/0.41 | 0.743 | 0.757 | 0.52 | 1.04 | 7.9 | 9.4 | 8.7 | 10.40 |
| 35.00 | 276/0.41 | 0.527 | 0.538 | 0.64 | 1.04 | 9.4 | 9.6 | 10.4 | 11.60 |
| 50.00 | 396/0.41 | 0.368 | 0.375 | 0.71 | 1.20 | 11.0 | 11.5 | 12.2 | 13.50 |
| 70.00 | 360/0.51 | 0.259 | 0.264 | 0.80 | 1.20 | 13.0 | 13.5 | 14.4 | 15.50 |
| 95.00 | 475/0.51 | 0.196 | 0.200 | 0.90 | 1.28 | 15.3 | 16.0 | 16.7 | 18.00 |
| 120.00 | 608/0.51 | 0.153 | 0.156 | - | 1.28 | - | 17.7 | - | 19.70 |
