XLPE/NBR 0.6/1kV 90°C

Premium single core double insulated cable featuring XLPE insulation and NBR rubber sheath for robust electrical and mechanical performance. Designed for flexibility, high insulation resistance and reliable operation up to 1100 V with heat, oil and abrasion resistance. Suitable for flexible power connections, switchgear, busbars, transformers and submersible system wiring in industrial and power distribution applications.

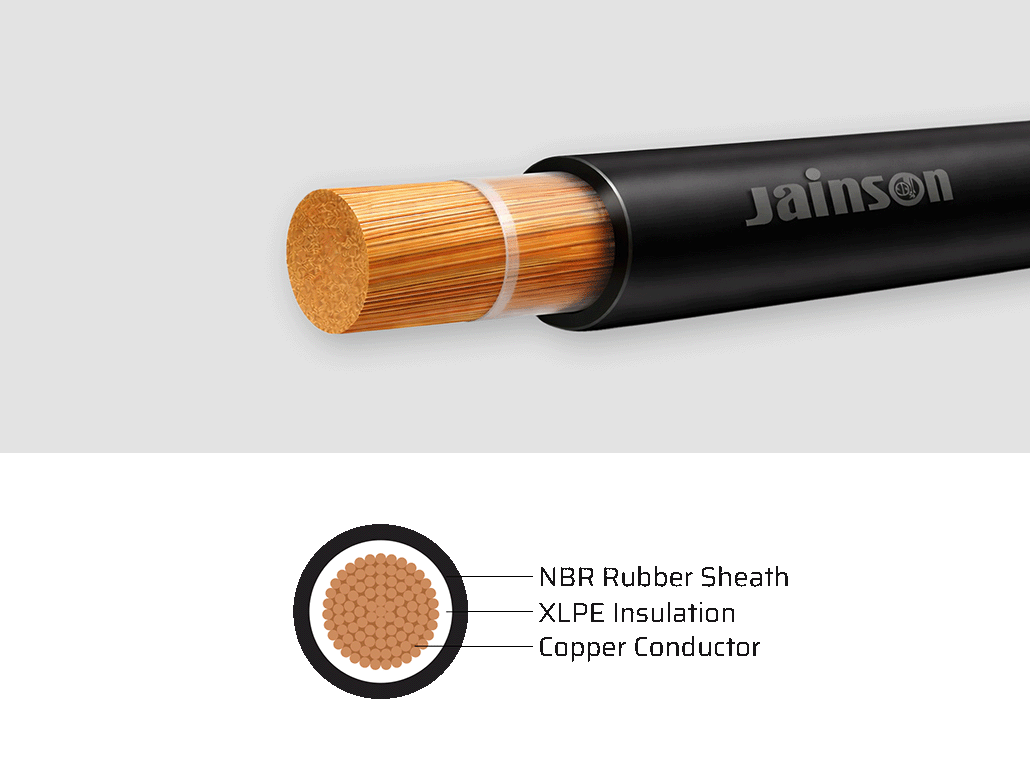

Cable Structure

Generally confirming to DIN VDE 0250, IEC 60332-1, Generally to AS/NZS 5000:2003, CE Directive 72/23/EEC

Conductor : EC copper class 5 and class 6 generally conforms to IEC 60228, DIN VDE 0281

Insulation : XLPE

Sheath : Flexible Nitrile rubber (NBR) Orange, Black, Red, Blue Jacket

*Any other Color on specific request can also be supplied

Technical Data

Operating Temp : -20°C to max.+80°C

Nominal Voltage : 1100 V

Test Voltage : 3000 V

Insulation resistance : Min. 20 MΩ x km

Min. bending radius : 7 x Cable Diameter

Flame propagation : Flame retardant test as per IEC 60332-1

Application

XLPE/NBR 0.6/1kV 90°C
- For applications where extreme flexibility is required - high current capacity. Power - Switchboards, flexible droppers from bus bars, transformers, load banks or other equipment requiring fixed or flexible wiring. Pumping - Suitable for permanent submersion

Standard length cable packing:
- Coils 100, 200,300 and 500 m in wooden reels

Cable Features

Heat resistant insulation

High insulation resistance

Excellent flexibility to last longer in flex applications

High resistance to cuts, tears & abrasion

Better mechanical & electrical properties

Resistance to oil, solvents and chemicals

Excellent ozone and weather resistant

Technical DataTable - XLPE/NBR single core double insulated cable

Cross Sectional Area	Copper Construction	Inner Dia.	Outer Dia Appx.	Max. Conductor Resistance at 20˚C
Sq. mm.	Nos. / Dia. mm	mm	mm	Ω/km
10	322 / 0.20	6.30	9.90	1.910
16	511 / 0.20	8.00	10.70	1.210
25	798 / 0.20	9.50	12.10	0.780
35	1121 / 0.20	11.00	14.20	0.554
50	1596 / 0.20	12.30	16.30	0.386
70	2220 / 0.20	14.40	18.70	0.272
95	1349 / 0.30	16.60	20.80	0.206
120	608 / 0.50	18.20	23.00	0.161
150	760 / 0.50	21.10	27.60	0.129
185	943 / 0.50	23.80	30.80	0.106
240	1225 / 0.50	26.80	34.00	0.0801
300	1498 / 0.50	30.30	37.50	0.0641
400	2035 / 0.50	33.60	41.30	0.0486

The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360
In view of continuous improvements in our design and process, specifications given here in are subject change without notice.
