XLPE Unarmoured Cables

XLPE Unarmoured Cables

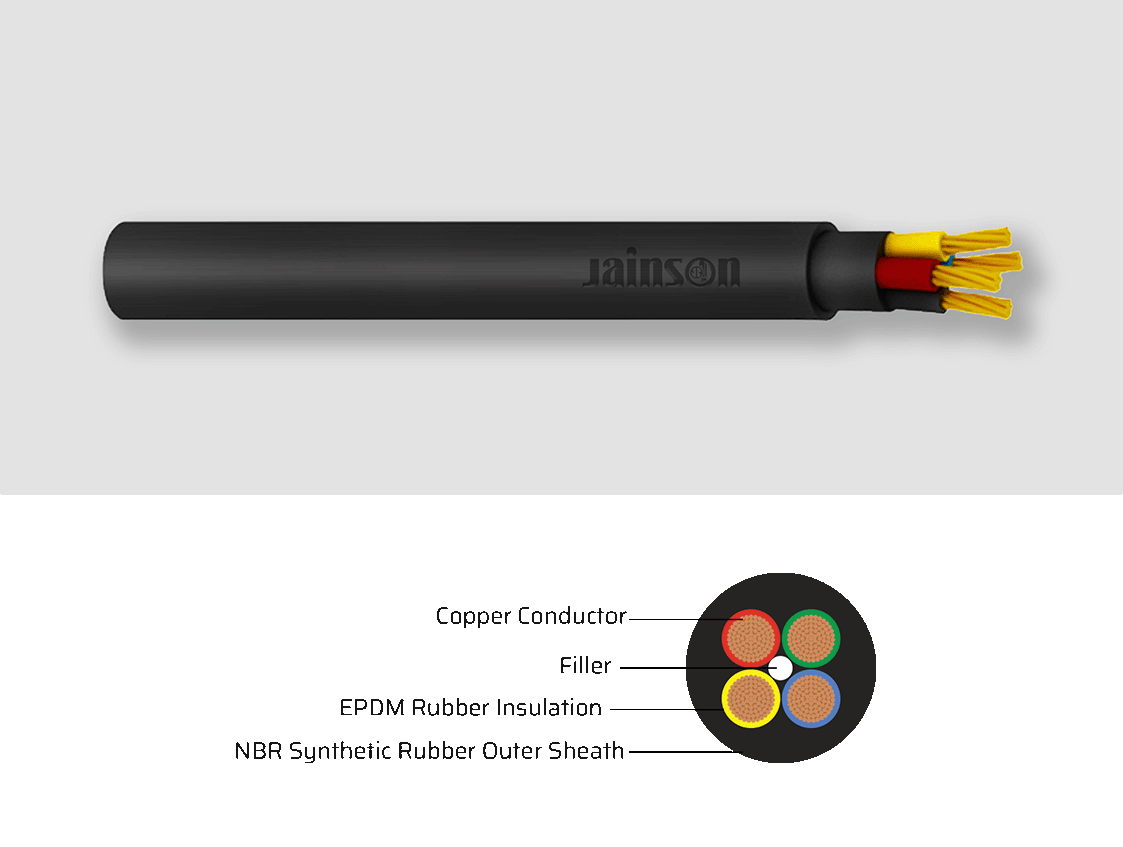

Cable Structure

generally conforms to IS 7098-1, BS 5467, IEC 60502-1, BS 7889

Conductor : Material - Copper / Aluminium solid or stranded wires class 1 or 2 according to IEC 60228,IS 8130
Insulation : XLPE-Cross linked polyethylene compound
Inner Sheath : PVC
Outer Sheath : PVC TYPE ST-2 OF IS 5831
Technical Data
Operating Temp : -20°c to max.+90°C
Nominal Voltage : 1100 V
Test Voltage : 3000 V
Insulation resistance : Min. 10 MΩ x km
Min. bending radius : Single Core : 15X Overall diameter
Multi Core : 12X Overall diameter
Flame propagation : Flame retardant test as per IEC 60332-1
Application
 XLPE Unarmoured Cables
-   Power cables for energy supply are installed outdoors, in underground, in water, indoors, in cable ducts, power stations, for industry and distribution boards as well as in subscriber networks, where mechanical damages are not to be expected.
 Standard length cable packing
-   Coils 100, 200, 300, 500, 1000 m. in wooden reels

Color Coding: AS IS 7098 ( Indian Standard )

Single Core 2 Core 3 Core 4 Core 5 Core
Red or Black Red, Black Red, Yellow, Blue Red, Yellow, Blue, Black Red, Yellow, Blue, Black, Grey

Color coding: AS IEC 60502 Part-1, B.S. 6346

Single Core 2 Core 3 Core 4 Core 5 Core
Black or Yellow/Green Blue and Brown or Yellow-Green and Black Brown, Black, Grey or Yellow/Green, Blue, Brown Blue, Brown, Black, Grey or Yellow/Green, Brown, Black, Grey Blue, Brown, Black, Grey, Black or Yellow/Green, Blue, Brown, Black, Grey

Technical DataTable

JAINSON 1.1 kV 3 CORE COPPER CONDUCTOR XLPE INSULATED , INNER SHEATHED UN.ARMOURED PVC SHEATHED CABLES (IS : 7098 PART 1 )
CABLE CODE : 2X-Y
SIZE (MM2) INSULATION XLPE THICKNESS IN MM (NOM.) INNER SHEATH PVC THICKNESS IN MM (MIN.) OUTER SHEATH PVC THICKNESS IN MM (MIN.) APPROX OUTER SHEATH O/D IN MM APPROX WEIGHT OF CABLE (KGS./KM) MAX.DC CONDUCTOR RESISTANCE
at 20° C (Ohm/Km) 		Current Ratings (Amp.)
Direct
In
Ground 		In Air
3 C X 1.5 0.70 0.30 1.80 11.60 185 12.10 23 22
3 C X 2.5 0.70 0.30 1.80 12.35 226 7.41 30 30
3 C X 4 0.70 0.30 1.80 13.85 304 4.61 44 39
3 C X 6 0.70 0.30 1.80 14.95 379 3.08 55 50
3 C X 10 0.70 0.30 1.80 17.10 541 1.83 74 67
3 C X 16 0.70 0.30 2.00 20.05 800 1.15 94 85
3 C X 25 0.90 0.40 2.00 20.10 946 0.727 120 125
3 C X 35 0.90 0.40 2.00 21.95 1241 0.524 145 155
3 C X 50 1.00 0.40 2.00 24.85 1700 0.387 170 190
3 C X 70 1.10 0.50 2.00 27.95 2255 0.268 210 235
3 C X 95 1.10 0.50 2.20 31.45 3034 0.193 250 290
3 C X 120 1.20 0.50 2.20 34.55 3801 0.153 285 330
3 C X 150 1.40 0.60 2.20 38.30 4702 0.124 315 375
3 C X 185 1.60 0.60 2.40 42.25 5737 0.0991 355 435
3 C X 240 1.70 0.70 2.60 47.05 7271 0.0754 410 510
3 C X 300 1.80 0.70 2.80 51.70 9011 0.0601 460 590
3 C X 400 2.00 0.70 3.00 58.75 11953 0.0470 520 670

Technical DataTable

JAINSON 1.1 kV 3.5 CORE COPPER CONDUCTOR XLPE INSULATED , INNER SHEATHED UN.ARMOURED PVC SHEATHED CABLES (IS : 7098 PART 1 )
CABLE CODE : 2X-Y
SIZE (MM2) INSULATION XLPE THICKNESS IN MM (NOM.) INNER SHEATH PVC THICKNESS IN MM (MIN.) OUTER SHEATH PVC THICKNESS IN MM (MIN.) APPROX OUTER SHEATH O/D IN MM APPROX WEIGHT OF CABLE (KGS./KM) MAX.DC CONDUCTOR RESISTANCE
at 20° C (Ohm/Km) 		Current Ratings (Amp.)
MAIN CORE HALF CORE Direct
In
Ground 		In Air
3.5C X 25 0.90 0.70 0.30 2.00 22.40 1122 0.727 120 125
3.5C X 35 0.90 0.70 0.30 2.00 24.20 1416 0.524 145 155
3.5C X 50 1.00 0.90 0.30 2.00 27.90 1974 0.387 170 190
3.5C X 70 1.10 0.90 0.40 2.20 31.95 2660 0.268 210 235
3.5C X 95 1.10 1.00 0.40 2.20 35.90 3569 0.193 250 290
3.5C X 120 1.20 1.10 0.50 2.40 40.40 4556 0.153 285 330
3.5C X 150 1.40 1.10 0.50 2.40 43.65 5465 0.124 315 375
3.5C X 185 1.60 1.10 0.60 2.60 48.75 6791 0.0991 355 435
3.5C X 240 1.70 1.20 0.70 2.80 54.30 8599 0.0754 410 510
3.5C X 300 1.80 1.40 0.80 3.00 60.05 10649 0.0601 460 590
3.5C X 400 2.00 1.60 0.80 3.40 68.20 14004 0.0470 520 670
3.5C X 500 2.20 1.70 1.00 3.60 76.10 17537 0.0366 580 750

Technical DataTable ( CABLE CODE : 2X-Y )

JAINSON 1.1 kV 4 CORE COPPER CONDUCTOR XLPE INSULATED , INNER SHEATHED UN.ARMOURED PVC SHEATHED CABLES (IS : 7098 PART 1 )
CABLE CODE : 2X-Y
SIZE (MM2) INSULATION XLPE THICKNESS IN MM (NOM.) INNER SHEATH PVC THICKNESS IN MM (MIN.) OUTER SHEATH PVC THICKNESS IN MM (MIN.) APPROX OUTER SHEATH O/D IN MM APPROX WEIGHT OF CABLE (KGS./KM) MAX.DC CONDUCTOR RESISTANCE at
20° C (Ohm/Km) 		Current Ratings (Amp.)
Direct
In
Ground 		In Air
4 C X 1.5 0.70 0.40 1.80 11.90 203 12.10 23 22
4 C X 2.5 0.70 0.40 1.80 13.35 270 7.41 30 30
4 C X 4 0.70 0.40 1.80 15.05 369 4.61 44 39
4 C X 6 0.70 0.40 1.80 16.25 465 3.08 55 50
4 C X 10 0.70 0.40 1.80 18.65 672 1.83 74 67
4 C X 16 0.70 0.40 2.00 22.15 1013 1.15 94 85
4 C X 25 0.90 0.50 2.00 23.90 1249 0.727 120 125
4 C X 35 0.90 0.50 2.00 26.40 1643 0.524 145 155
4 C X 50 1.00 0.50 2.20 30.50 2285 0.387 170 190
4 C X 70 1.10 0.60 2.20 34.40 3027 0.268 210 235
4 C X 95 1.10 0.60 2.20 38.40 4030 0.193 250 290
4 C X 120 1.20 0.60 2.40 42.80 5095 0.153 285 330
4 C X 150 1.40 0.70 2.60 47.65 6320 0.124 315 375
4 C X 185 1.60 0.70 2.80 52.75 7730 0.0991 355 435
4 C X 240 1.70 0.80 3.00 58.50 9750 0.0754 410 510
4 C X 300 1.80 0.80 3.20 64.60 12109 0.0601 460 590
4 C X 400 2.00 0.80 3.60 73.80 16115 0.0470 520 670

Technical DataTable ( CABLE CODE : 2X-Y )

JAINSON 1.1 kV SINGLE CORE COPPER CONDUCTOR XLPE INSULATED , INNER SHEATHED UN.ARMOURED PVC SHEATHED CABLES (IEC : 60502-1)
CABLE CODE : 2X-Y
SIZE (MM2) INSULATION XLPE THICKNESS IN MM (NOM.) INNER SHEATH PVC THICKNESS IN MM (MIN.) OUTER SHEATH PVC THICKNESS IN MM (MIN.) APPROX OUTER SHEATH O/D IN MM APPROX WEIGHT OF CABLE (KGS./KM) MAX.DC CONDUCTOR RESISTANCE at
20° C (Ohm/Km) 		Current Ratings (Amp.)
Direct
In
Ground 		In Air
1 C X 1.5 0.70 1.00 1.40 8.25 90 12.10 23 22
1 C X 2.5 0.70 1.00 1.40 8.60 103 7.41 30 30
1 C X 4 0.70 1.00 1.40 9.30 129 4.61 48 45
1 C X 6 0.70 1.00 1.40 9.80 153 3.08 60 57
1 C X 10 0.70 1.00 1.40 10.80 204 1.83 80 77
1 C X 16 0.70 1.00 1.40 11.80 274 1.15 104 106
1 C X 25 0.90 1.00 1.40 13.50 386 0.727 130 145
1 C X 35 0.90 1.00 1.45 14.80 500 0.524 155 175
1 C X 50 1.00 1.00 1.50 16.80 677 0.387 185 215
1 C X 70 1.10 1.00 1.55 18.60 879 0.268 225 270
1 C X 95 1.10 1.00 1.60 20.60 1157 0.193 265 330
1 C X 120 1.20 1.00 1.65 22.60 1442 0.153 300 380
1 C X 150 1.40 1.00 1.75 24.80 1770 0.124 335 430
1 C X 185 1.60 1.00 1.80 27.00 2133 0.0991 380 495
1 C X 240 1.70 1.00 1.90 29.80 2678 0.0754 435 590
1 C X 300 1.80 1.20 2.00 33.00 3316 0.0601 490 670
1 C X 400 2.00 1.20 2.15 37.30 4391 0.0470 550 780
1 C X 500 2.20 1.20 2.30 41.00 5399 0.0366 610 900
1 C X 630 2.40 1.40 2.55 48.75 6833 0.0283 680 1020

Technical DataTable ( CABLE CODE : 2X-Y )

JAINSON 1.1 kV 3 CORE COPPER CONDUCTOR XLPE INSULATED , INNER SHEATHED UN.ARMOURED PVC SHEATHED CABLES (IEC : 60502-1)
CABLE CODE : 2X-Y
SIZE (MM2) INSULATION PVC THICKNESS IN MM (NOM.) INNER SHEATH PVC THICKNESS IN MM (MIN.) OUTER SHEATH PVC THICKNESS IN MM (MIN.) APPROX OUTER SHEATH O/D IN MM APPROX WEIGHT OF CABLE (KGS./KM) MAX.DC CONDUCTOR RESISTANCE
at 20° C (Ohm/Km) 		Current Ratings (Amp.)
Direct
In
Ground 		In Air
3 C X 1.5 0.70 1.00 1.80 12.80 221 12.10 23 22
3 C X 2.5 0.70 1.00 1.80 13.55 263 7.41 30 30
3 C X 4 0.70 1.00 1.80 15.05 346 4.61 44 39
3 C X 6 0.70 1.00 1.80 16.15 424 3.08 55 50
3 C X 10 0.70 1.00 1.80 18.30 592 1.83 74 67
3 C X 16 0.70 1.00 1.80 20.85 840 1.15 94 85
3 C X 25 0.90 1.00 1.80 20.85 994 0.727 120 125
3 C X 35 0.90 1.00 1.80 22.55 1287 0.524 145 155
3 C X 50 1.00 1.00 1.80 25.40 1751 0.387 170 190
3 C X 70 1.10 1.00 1.85 28.55 2319 0.268 210 235
3 C X 95 1.10 1.20 2.00 32.35 3137 0.193 250 290
3 C X 120 1.20 1.20 2.10 35.65 3936 0.153 285 330
3 C X 150 1.40 1.20 2.20 39.40 4854 0.124 315 375
3 C X 185 1.60 1.40 2.35 43.65 5945 0.0991 355 435
3 C X 240 1.70 1.40 2.50 47.95 7450 0.0754 410 510
3 C X 300 1.80 1.40 2.65 52.60 9179 0.0601 460 590
3 C X 400 2.00 1.60 2.90 59.80 12065 0.0470 520 670

Technical DataTable ( CABLE CODE : 2X-Y )

JAINSON 1.1 kV 3.5 CORE COPPER CONDUCTOR XLPE INSULATED , INNER SHEATHED UN.ARMOURED PVC SHEATHED CABLES (IEC : 60502-1)
CABLE CODE : 2X-Y
SIZE (MM2) INSULATION XLPE THICKNESS IN MM (NOM.) INNER SHEATH PVC THICKNESS IN MM (MIN.) OUTER SHEATH PVC THICKNESS IN MM (MIN.) APPROX OUTER SHEATH O/D IN MM APPROX WEIGHT OF CABLE (KGS./KM) MAX.DC CONDUCTOR RESISTANCE
at 20° C (Ohm/Km) 		Current Ratings (Amp.)
MAIN CORE HALF CORE Direct
In
Ground 		In Air
3.5C X 25 0.90 0.70 1.0 1.80 23.60 1193 0.727 120 125
3.5C X 35 0.90 0.70 1.0 1.80 25.35 1485 0.524 145 155
3.5C X 50 1.00 0.90 1.0 1.90 29.25 2065 0.387 170 190
3.5C X 70 1.10 0.90 1.2 2.00 33.30 2768 0.268 210 235
3.5C X 95 1.10 1.00 1.2 2.15 37.55 3716 0.193 250 290
3.5C X 120 1.20 1.10 1.2 2.30 41.50 4671 0.153 285 330
3.5C X 150 1.40 1.10 1.40 2.40 45.60 5679 0.124 315 375
3.5C X 185 1.60 1.10 1.40 2.60 50.50 7003 0.0991 355 435
3.5C X 240 1.70 1.20 1.60 2.75 56.25 8865 0.0754 410 510
3.5C X 300 1.80 1.40 1.60 2.95 61.70 10895 0.0601 460 590
3.5C X 400 2.00 1.60 1.60 3.20 69.70 14309 0.0470 520 670

Technical DataTable ( CABLE CODE : 2X-Y )

JAINSON 1.1 kV 4 CORE COPPER CONDUCTOR XLPE INSULATED , INNER SHEATHED ARMOURED PVC SHEATHED CABLES (IEC : 60502-1)
CABLE CODE : 2X-Y
SIZE (MM2) INSULATION XLPE THICKNESS IN MM (NOM.) INNER SHEATH PVC THICKNESS IN MM (MIN.) OUTER SHEATH PVC THICKNESS IN MM (MIN.) APPROX OUTER SHEATH O/D IN MM APPROX WEIGHT OF CABLE (KGS./KM) MAX.DC CONDUCTOR RESISTANCE
at 20° C (Ohm/Km) 		Current Ratings (Amp.)
Direct
In
Ground 		In Air
4 C X 1.5 0.70 0.40 1.80 11.90 203 12.10 23 22
4 C X 2.5 0.70 0.40 1.80 13.35 270 7.41 30 30
4 C X 4 0.70 0.40 1.80 15.05 369 4.61 44 39
4 C X 6 0.70 0.40 1.80 16.25 465 3.08 55 50
4 C X 10 0.70 0.40 1.80 18.65 672 1.83 74 67
4 C X 16 5 C X 16 6 C X 16 7 C X 16 8 C X 16 9 C X 16 10 C X 16 11 C X 16 12 C X 16
4 C X 25 0.90 0.50 2.00 23.90 1249 0.727 120 125
4 C X 35 0.90 0.50 2.00 26.40 1643 0.524 145 155
4 C X 50 1.00 0.50 2.20 30.50 2285 0.387 170 190
4 C X 70 1.10 0.60 2.20 34.40 3027 0.268 210 235
4 C X 95 1.10 0.60 2.20 38.40 4030 0.193 250 290
4 C X 120 1.20 0.60 2.40 42.80 5095 0.153 285 330
4 C X 150 1.40 0.70 2.60 47.65 6320 0.124 315 375
4 C X 185 1.60 0.70 2.80 52.75 7730 0.0991 355 435
4 C X 240 1.70 0.80 3.00 58.50 9750 0.0754 410 510
4 C X 300 1.80 0.80 3.20 64.60 12109 0.0601 460 590
4 C X 400 2.00 0.80 3.60 73.80 16115 0.0470 520 670
