HO5V2-R, HO7V2-R - Harmonized Standard Jainson Cables.

HO5V2-R 300/500 V HO7V2-R 450/750 V

Flexible H05V2-R harmonized cable featuring stranded copper conductors and heat-resistant insulation for dependable performance in fixed wiring and appliance connections. With excellent mechanical and electrical properties, heat stability and resistance to moisture and abrasion, it’s ideal for general purpose electrical wiring in industrial and residential environments.

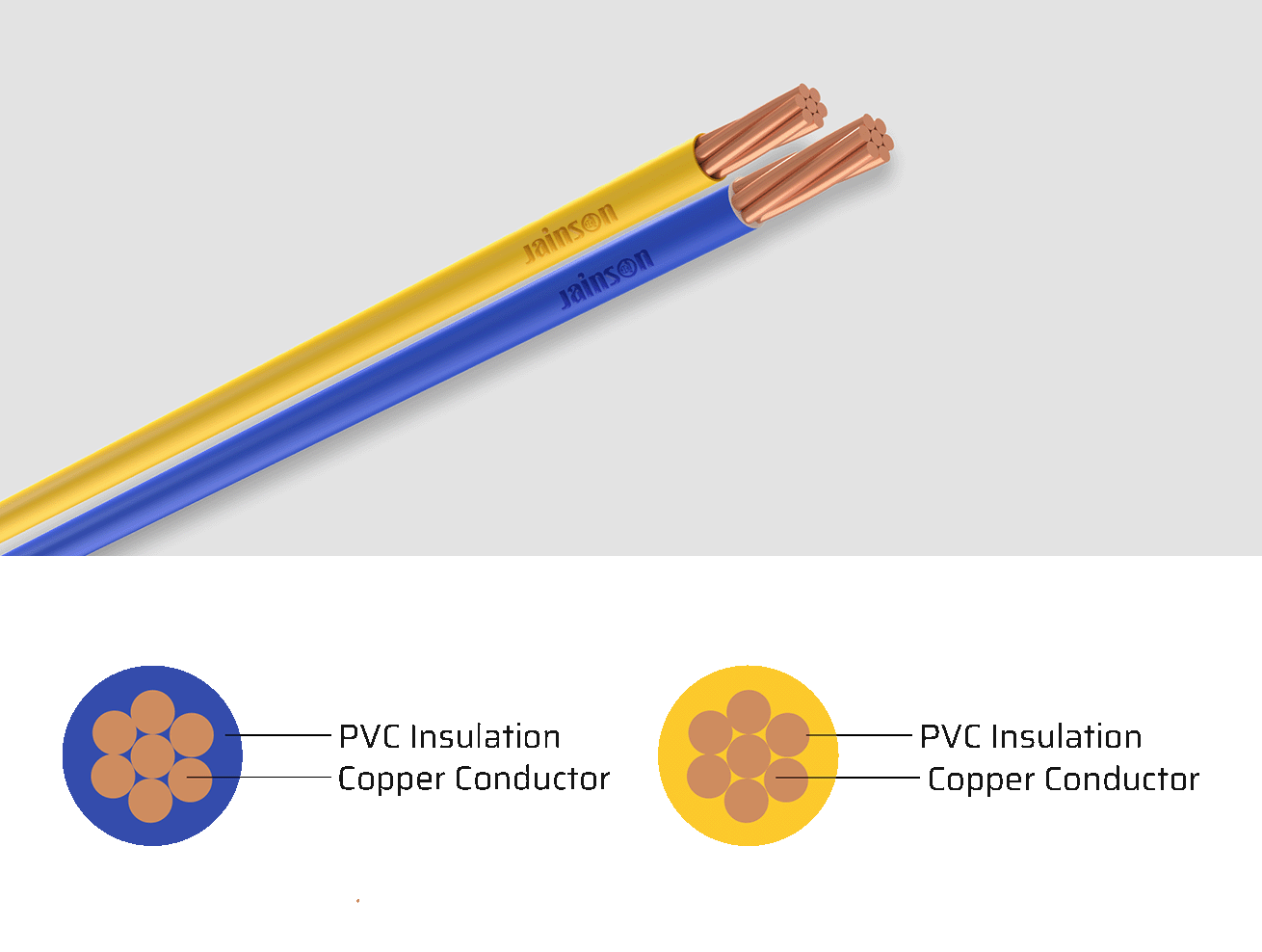

Cable Structure

Conductor : Multiple-wire, round copper conductor class 2, DIN VDE 0281, IEC 60228

Insulation : Heat - resistant polyvinyl chloride (PVC) insulation

Color : Green/Yellow, Blue, Black, Brown, Grey, Orange, Pink, Red, Violet, White, Green, Yellow or other colours

Flame propagation : Flame retardant test as per IEC 60332-1

Technical Data

Operating Temp : -30°C to +90°C

Nominal Voltage : HO5V2-R : 300/500 VHO7V2-R : 450/750 V

Test Voltage :HO5V2-R : 2000 V
HO7V2-R : 2500 V

Insulation resistance : 20 MΩ x km

Min. bending radius : 4 x cable diameter

Applications

HO5V2-R, HO7V2-R
- For internal wiring of appliances as well as installation in an electrical conduit pipe either on or underneath plaster

Standard length cable packing:
- Coils 100 and 200 m in Carton Boxes, Reels

Cable Features

Special heat resistant insulation

High Current Carrying Capacitys

Less heat energy radiation

Long flex life

Excellent resistant to moisture, abrasion, grace, oil

Excellent mechanical & electrical properties

harmonized acc. to European standards

Insulation is highly thermal stable

Tested by SGS, EIL, RITES, NPC, INTERTEK

H05V2-R (450/750 V)

Size in mm	Nos/ dia. (Nom.)	Insulation Thickness in mm ( nom.)	Outer Dia in mm (Appx.)	Max. C.R in ohm/km Copper
0.5	7 /0.30	0.60	2.20	36.00
0.75	7/0.37	0.60	2.30	24.50
1	7/0.43	0.60	2.70	18.10

All are class 2 stranded conductor

Insulation grade is TI1

H07V2-R (300/500 V)

Size in mm	Nos/ dia. (Nom.)	Insulation Thickness in mm ( nom.)	Outer Dia in mm (Appx.)	Max. C.R in ohm/km Copper
1.5	7/0.52	0.70	3.00	12.1
2.5	7/0.67	0.80	3.60	7.41
4	7/0.85	0.80	4.30	4.61
6	7/1.05	0.80	4.80	3.08
10	7/1.35	1.00	6.10	1.83
16	7/1.71	1.00	7.40	1.15
25	7/2.14	1.20	8.90	0.727
35	7/2.52	1.20	10.10	0.524
50	19/1.83	1.40	11.90	0.387
70	19/2.14	1.40	14.00	0.268
95	19/2.52	1.60	13.30	0.193
120	37/2.03	1.60	17.80	0.153
150	37/2.27	1.80	20.00	0.124
185	37/2.52	2.00	23.80	1.15
240	61/2.24	2.20	26.50	0.0991
300	61/2.50	2.40	29.60	0.0754
400	61/2.88	2.60	34.00	0.047
500	61/3.23	2.80	37.70	0.0366
630	91/2.97	2.80	42.60	0.0283

All are class 2 stranded conductor

Insulation grade is TI1
