H05VV-F, H05V2V2-F

H05VV-F, H05V2V2-F (300/500 V)

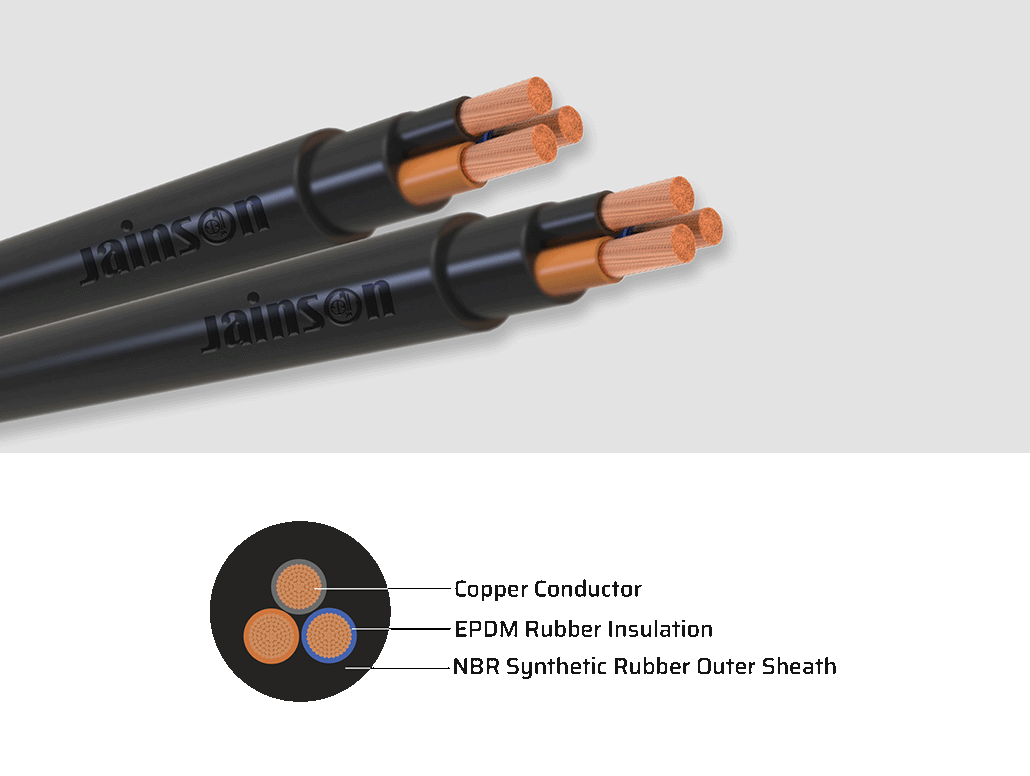

Cable Structure
Conductor : Fine Stranded Copper (Class 5 - Flexible Plain Copper) to VDE 0295 IEC 60228
Insulation : HO5VVF : PVC
HO5V2V2F : Heat Resistant PVC
Color : White, Black, Blue or as per party order
Technical Data
Operating Temp : H05VV-F -20°c to +80°C
H05V2V2-F -20°c to +90°C
Nominal Voltage : H05VV-F : 300/500 V
H05V2V2-F : 450/750 V
Test Voltage :H05VV-F : 2.5KV
H05V2V2-F : 2.5KV
Insulation resistance :Min. 20 MΩ x km
Min. bending radius : 7 x cable diameter
Applications
 H05VV-F, H05V2V2-F
H05VV-F AND H05V2V2-F cordage is a flexible PVC insulated, PVC jacketed harmonized cord recommended for use in electronic and electrical equipment such as office.
 Standard length cable packing:
100, 200, 500, 1000 m. in reels
Cable Features
Special heat resistant rubber insulation
High Current Carrying Capacitys
Less heat energy radiation
Longer flex life
High compatibility of cores
Excellent resistant to moisture, abrasion, grace, oil
Excellent mechanical & electrical properties
Insulation is highly thermal stable
Harmonized acc. to European standards
Tested by SGS, EIL, RITES, NPC, INTERTEK

H05VV-F, H05V2V2-F (300/500 V)

Nom. Sq.Area Copper Configuration Nominal insulation thickness Nominal Sheath Thickness in mm Appx.overall Diameter in mm Max Conductor Resistance at 20°C
2 core 3 core 4 core 5 core 2 core 3 core 4 core 5 core
sq mm Nos/ mm. (Nom.) mm mm mm mm mm mm mm mm mm Ω/km
0.75 24/0.200 0.60 0.80 0.80 0.80 0.90 6.20 6.50 7.10 8.00 26.00
1 32/0.200 0.60 0.80 0.80 0.90 0.90 7.20 7.60 8.50 9.30 19.50
1.5 30/0.250 0.70 0.80 0.90 1.00 1.10 7.80 8.45 9.50 10.55 13.30
2.5 50/0.250 0.80 1.00 1.00 1.10 1.20 9.40 9.95 11.10 12.35 7.98
4 56/0.300 0.80 1.10 1.20 1.20 1.40 10.60 11.40 12.50 14.10 4.95
  All are class 5 flexible conductor
  Insulation grade is TI2
  Sheathing grade is TM2
  All are class 5 flexible conductor
  Insulation grade is TI3
  Sheathing grade is TM3

Note

  • The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360 or UL83
