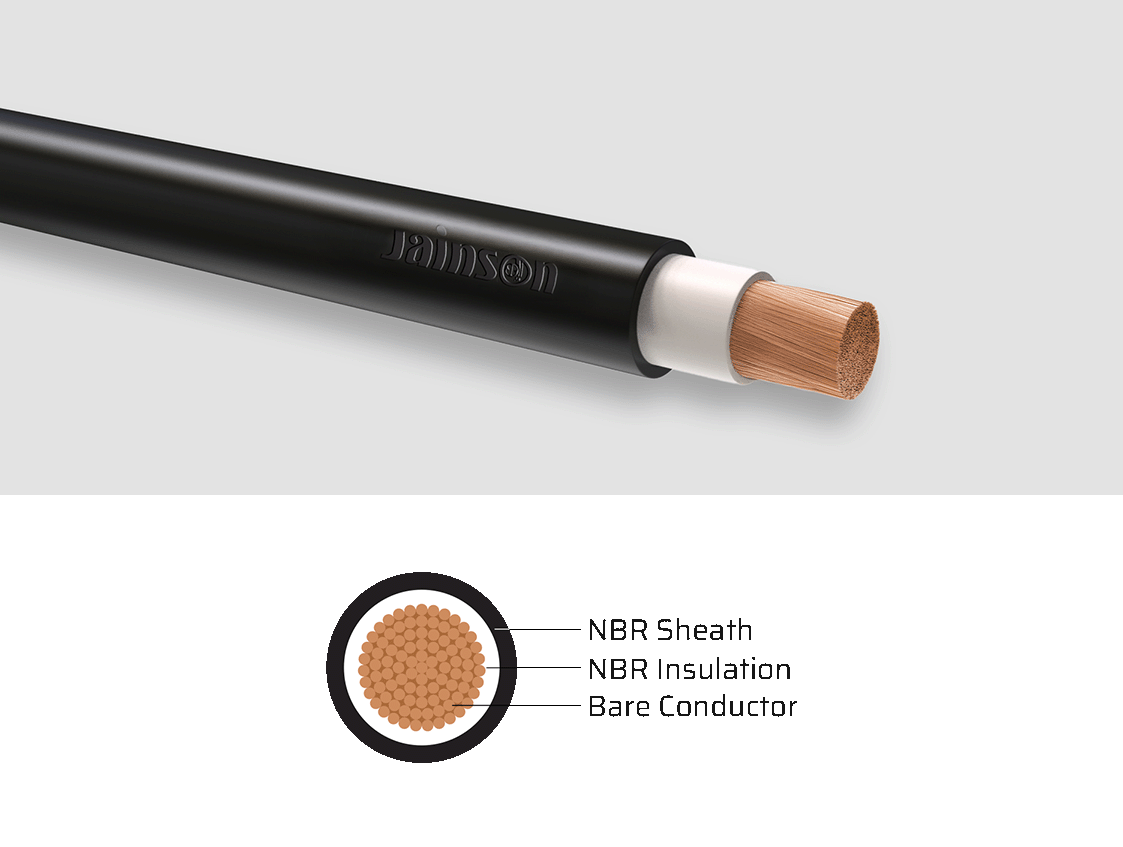

Cable Structure
Conductor : EC
copper class 5 and class 6 generally conforms to IEC 60228, DIN VDE 0281
Insulation :
EPM
Sheath : LSZH (Low
Smoke Zero Halogen) Gray, Orange, Black, Red, Blue
*Any other Color on specific request can also be supplied
Technical Data
Fixed installation :
-20°c to max.+90°C
Nominal Voltage :
1100 V
Test Voltage : 3000
V
Insulation
resistance : Min. 10 MΩ x km
Min. bending radius
: 6 x Cable Diameter
Flame propagation :
Flame retardant test as per IEC 60332-1
Application
EPM/LSZH 0.6/1Kv
90°C
- Suitable for D.C. power supplies on Telecom equipment and power applications where flexibility is required
Shipboard and offshore marine use where a low smoke halogen free tinned flexible cable is required for safety and to meet Certification Society approvals
- Suitable for D.C. power supplies on Telecom equipment and power applications where flexibility is required
Shipboard and offshore marine use where a low smoke halogen free tinned flexible cable is required for safety and to meet Certification Society approvals
Standard length cable
packing:
- Coils 100, 200,300 and 500 m in wooden reels
- Coils 100, 200,300 and 500 m in wooden reels
Cable Features
Zero halogen low smoke insulation
Ultra high performance flexible for longer life and added safety
High flame retardant properties
Outstanding toughness & durability
High resistance to cuts, tears & abrasion
Resistance to oil, solvents and chemicals
Excellent ozone and weather resistant
Technical DataTable - EPM/LSZH single core double insulated cable
| Cross Sectional Area | Copper Construction | Inner Dia. | Outer Dia Appx. | Max. Conductor Resistance at 20˚C |
| Sq. mm. | Nos. / Dia. mm | mm | mm | Ω/km |
| 10 | 322 / 0.20 | 6.30 | 9.90 | 1.910 |
| 16 | 511 / 0.20 | 8.00 | 10.70 | 1.210 |
| 25 | 798 / 0.20 | 9.50 | 12.10 | 0.780 |
| 35 | 1121 / 0.20 | 11.00 | 14.20 | 0.554 |
| 50 | 1596 / 0.20 | 12.30 | 16.30 | 0.386 |
| 70 | 2220 / 0.20 | 14.40 | 18.70 | 0.272 |
| 95 | 1349 / 0.30 | 16.60 | 20.80 | 0.206 |
| 120 | 608 / 0.50 | 18.20 | 23.00 | 0.161 |
| 150 | 760 / 0.50 | 21.10 | 27.60 | 0.129 |
| 185 | 943 / 0.50 | 23.80 | 30.80 | 0.106 |
| 240 | 1225 / 0.50 | 26.80 | 34.00 | 0.0801 |
| 300 | 1498 / 0.50 | 30.30 | 37.50 | 0.0641 |
| 400 | 2035 / 0.50 | 33.60 | 41.30 | 0.0486 |
- The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360
- In view of continuous improvements in our design and process, specifications given here in are subject change without notice.
All are flexible conductor
Insulation material is EPM
Sheath material is LSZH
